Hubs & Carriers

We manufacture a wide range of components for race and rental karts.


Aluminium Billet Components:   All these components are precision engineered using the latest CNC technology. We use only high quality aluminium billet and all parts are fitted with high tensile steel studs and bolts. These parts have an anodised finish and are available for 25mm, 30mm and 50mm axles.

Cast Aluminium Components:   Manufactured from heat treated cast aluminium and then machined on our CNC machines. These parts offer good value for money and are available to fit 25mm and 30mm axles. Some of these components can also be manufactured to fit 35mm axlers upon request.


Please CLICK HERE for our full range

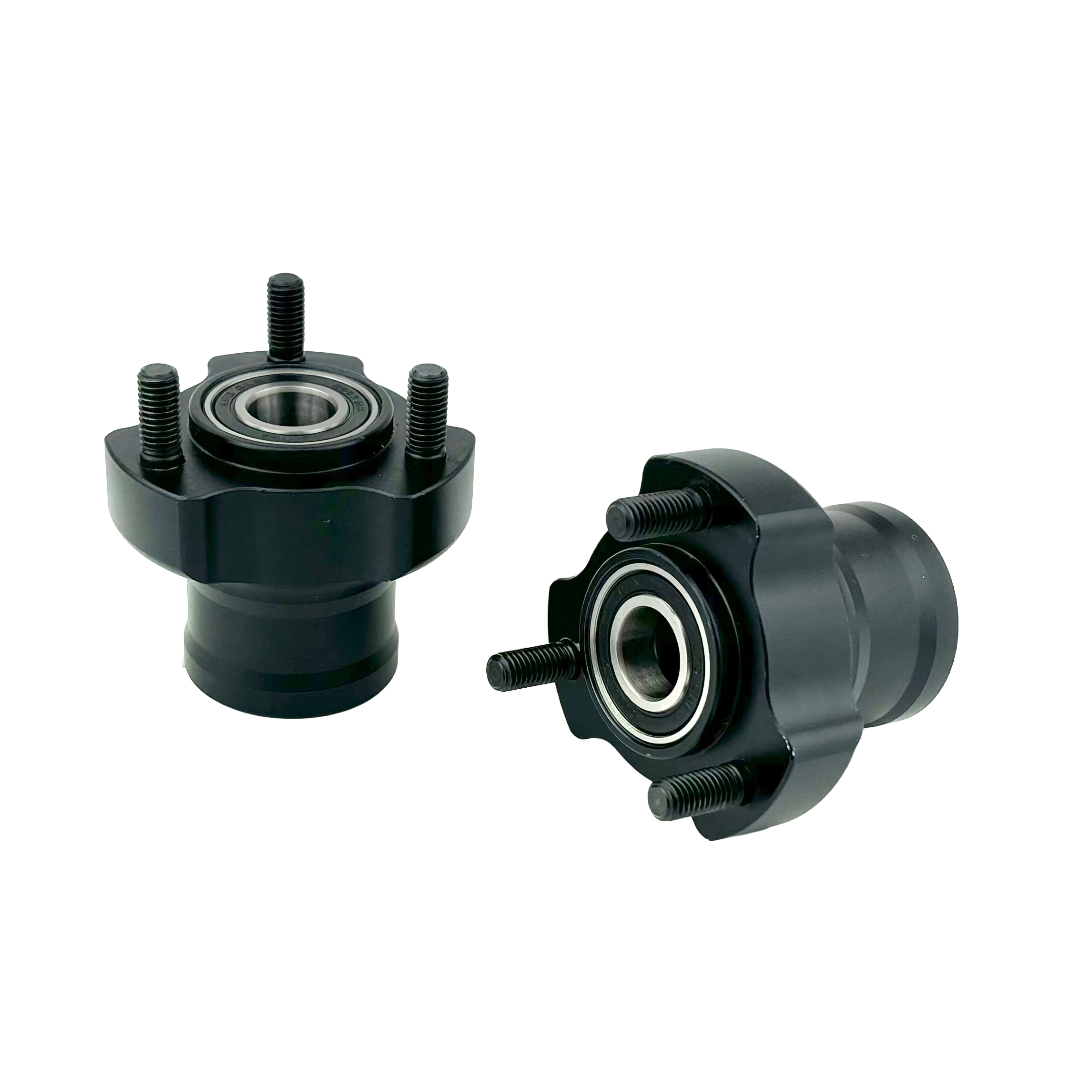

Front Hubs

Front hubs are CNC machined all over and finished off with a black anodise.

These hubs are designed to be used on 17mm stub axles and come with 2 x 6003ZZ bearings fitted. They are available in three lengths of 55mm, 75mm and 95mm.


  • AEQ-FH55  - Front Hub 17mm x 55mm
  • AEQ-FH75 - Front Hub 17mm x 75mm
  • AEQ-FH95 - Front Hub 17mm x 95mm

Hubs are manufactured with a 58mm PCD and a 40mm location.

25mm Cadet Rear Hubs

Precison engineered and manufactured from high quality aluminium billet and fitted with high tensile wheel studs and clamping bolts.

  • AEQ-RH25S  -  25mm x 40mm with single M8 clamping bolt, 6mm key and finshed off with a gun metal anodise - Coming Soon
  • AEQ-RH25M  - 25mm x 62mm with twin M6 clamping bolts, 6mm key and finshed off with a gun metal anodise.
Hubs have 58mm PCD and a 40mm location.

25mm Disc Carrier

This 25mm disc carrier is designed to be used with our MSA/CADET homologated disc which in turn is used with our KC30 Cadet brake system.


  • AEQ-DCC25 - Twin M6 clamping bolts, 6mm key and finished off with a gun metall anodise.

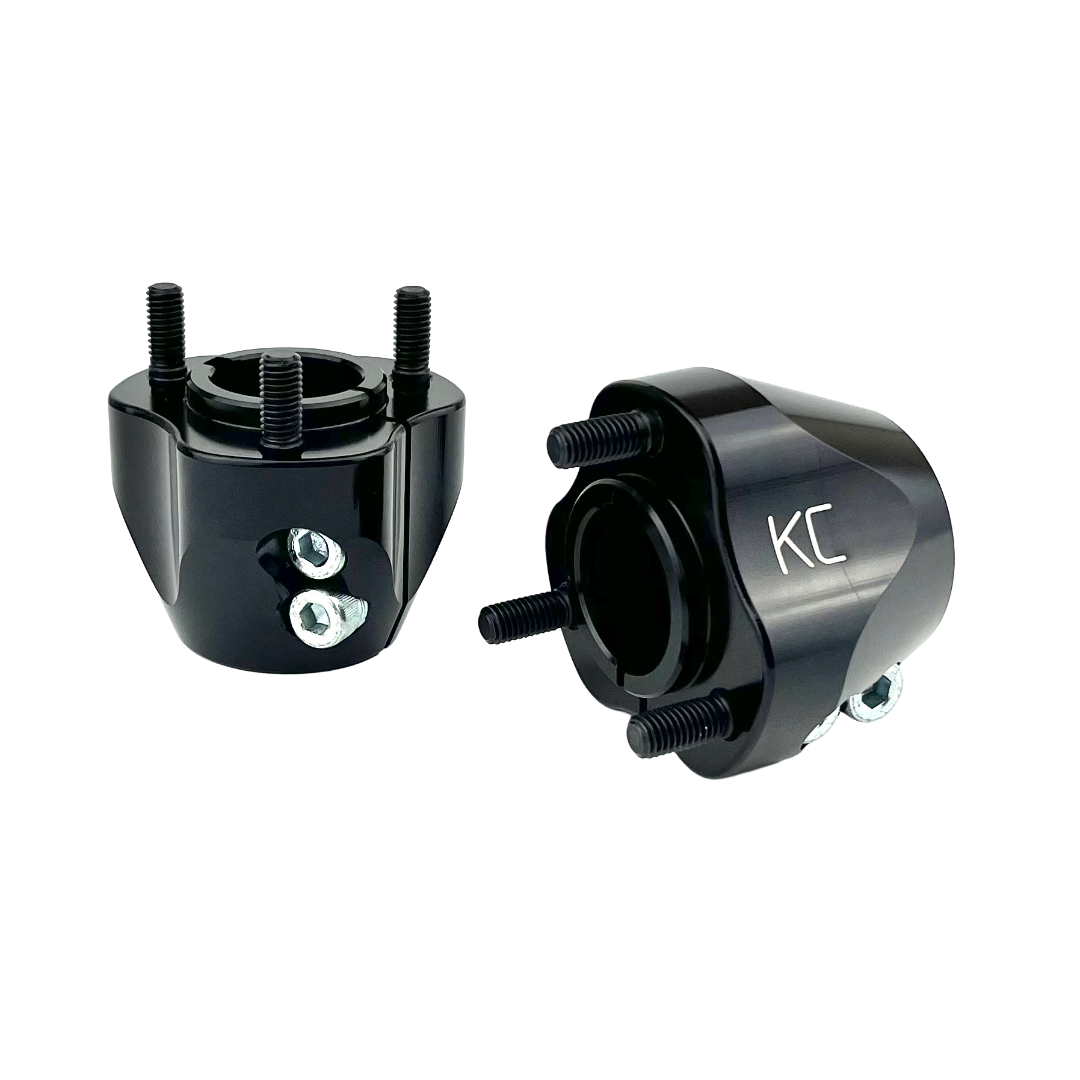

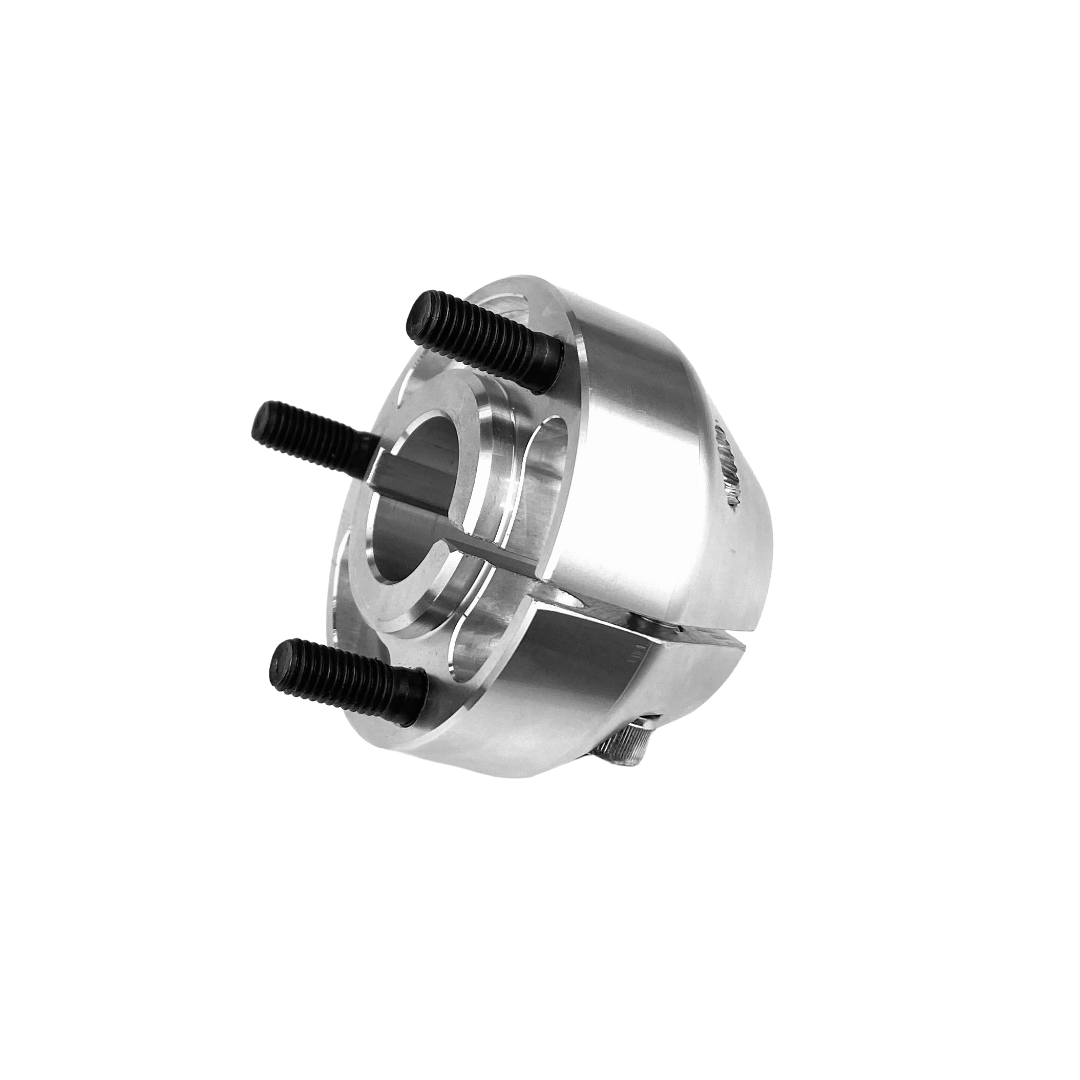

30mm Rental/Pro Kart Rear Hub

New for 2018 is our 30mm twin bolt hub. Manufactured by high quality billet aluminium with twin pinch bolts and high quality high tensile wheel studs this hub is built for rental karts and Pro karts.


  • AEQ-RH30RACE - 30mm x 55mm, twin M8 clamping bolts, 6mm key and finshed off with a gun metal anodise.
  • AEQ-RH30RENT - 30mm x 55mm, twin M8 clamping bolts and a 6mm key.
Hubs have a 58mm PCD and a 40mm Location

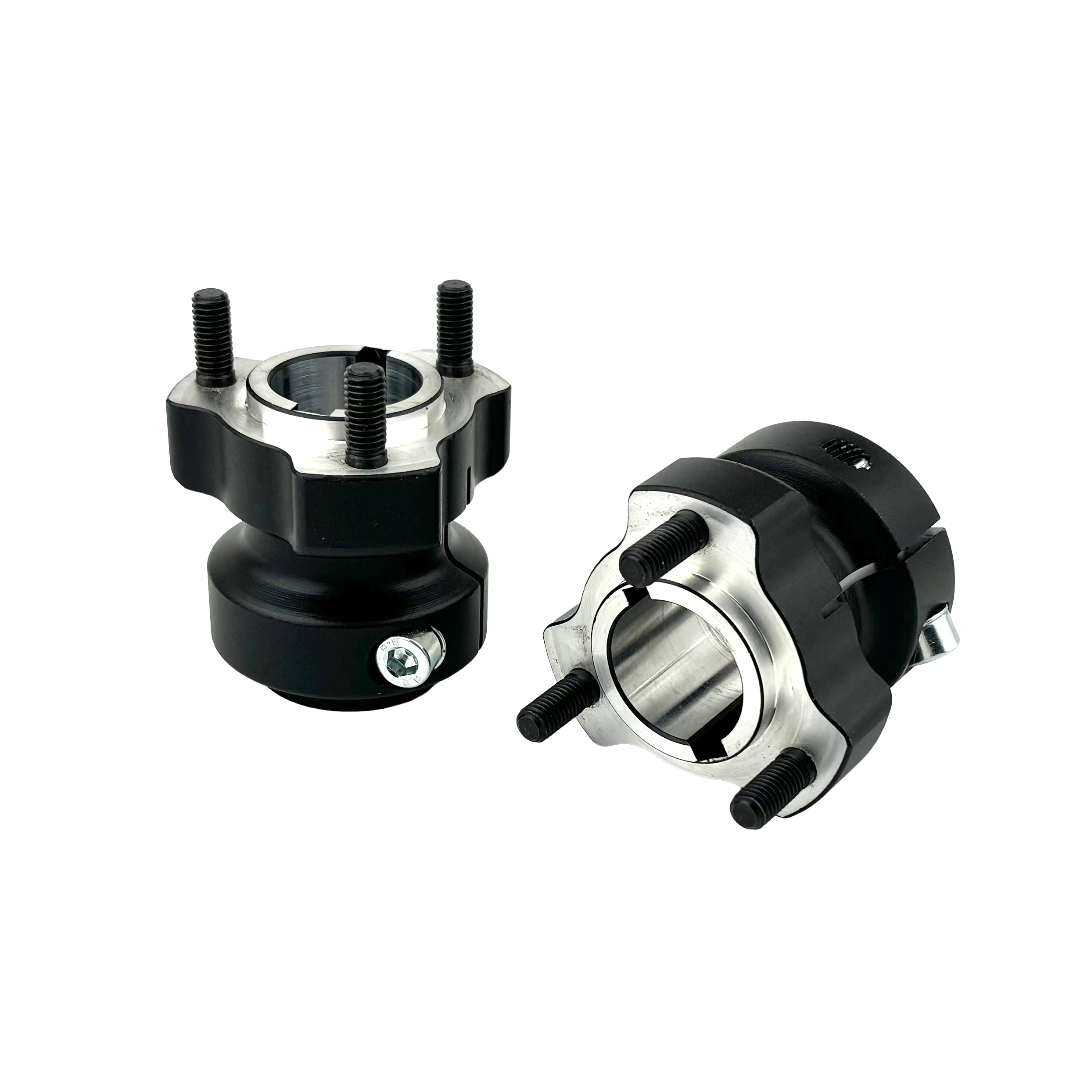

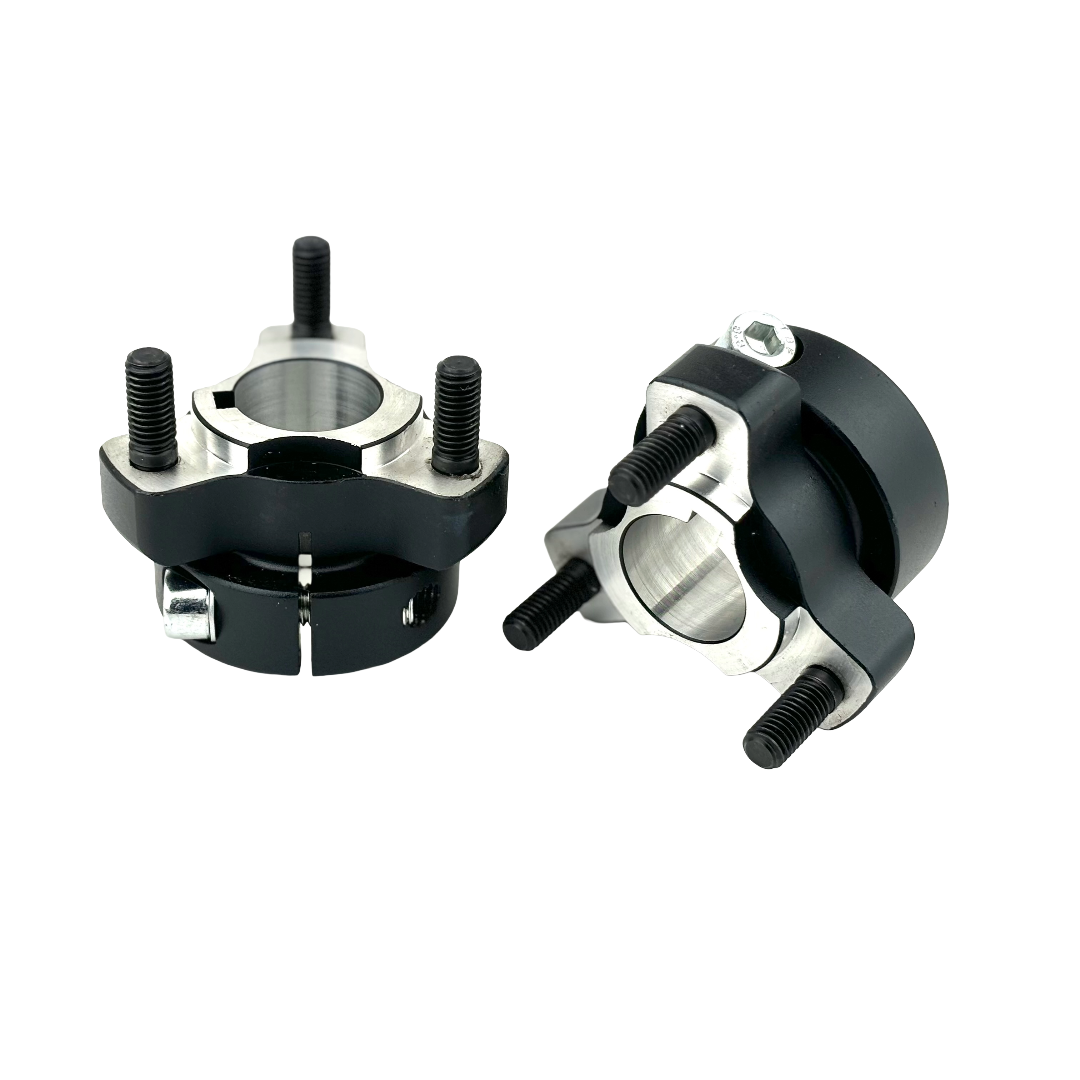

30mm Rear Hubs

All parts are manufactured from aluminium billet and finished off in a black anodise. These hubs are manufactured with a 6mm and 8mm key.


  • AEQ-RH30S -  30mm x 62mm, single M8 clamping bolt, 6mm/8mm key and finished off with a black anodise.
  • AEQ-RH30M - 30mm x 95mm, single M8 clamping bolt, 6mm/8mm key and finished off with a black anodise.
  • AEQ-RH30L -  30mm x 115mm, twin M8 clamping bolt, 6mm/8mm key and finished off with a black anodise.

Hubs have a 58mm PCD and a 40mm Location

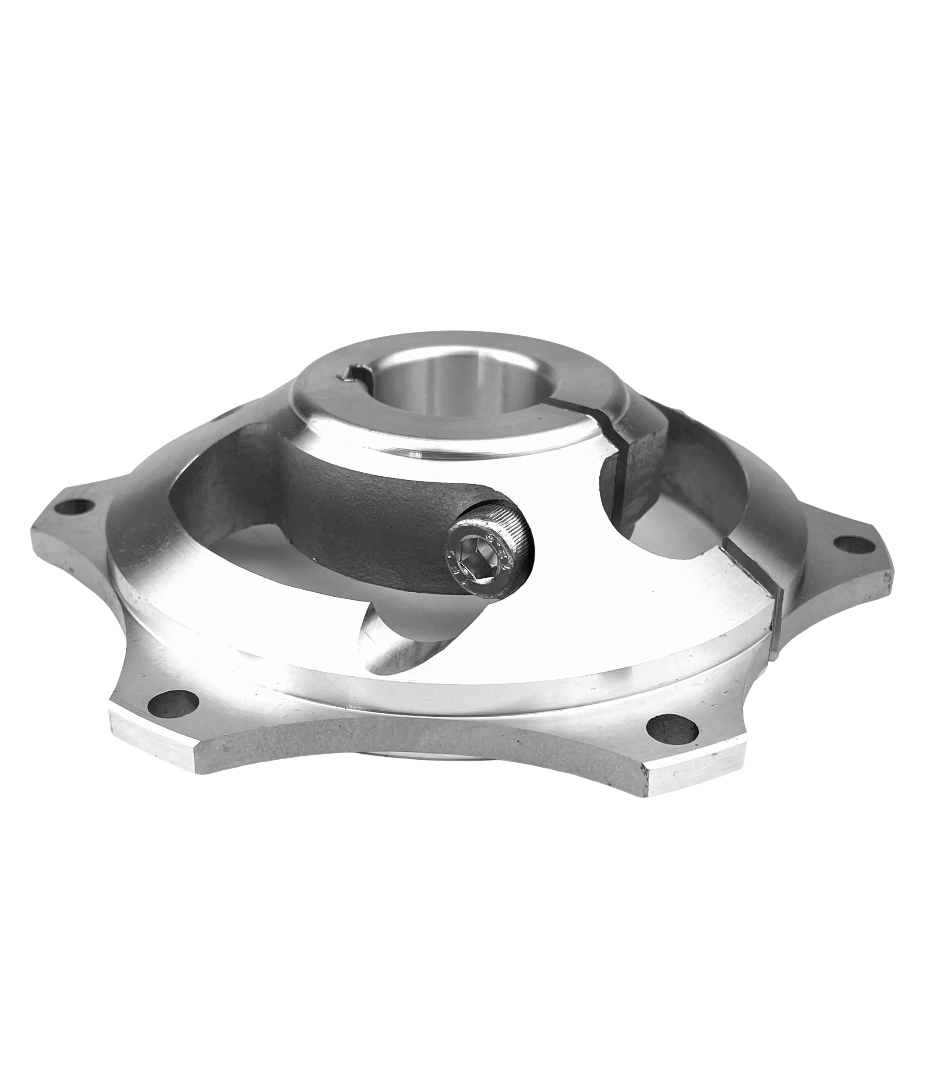

30mm Disc Carriers

We manufacture a selection of 30mm disc carriers for different applications.

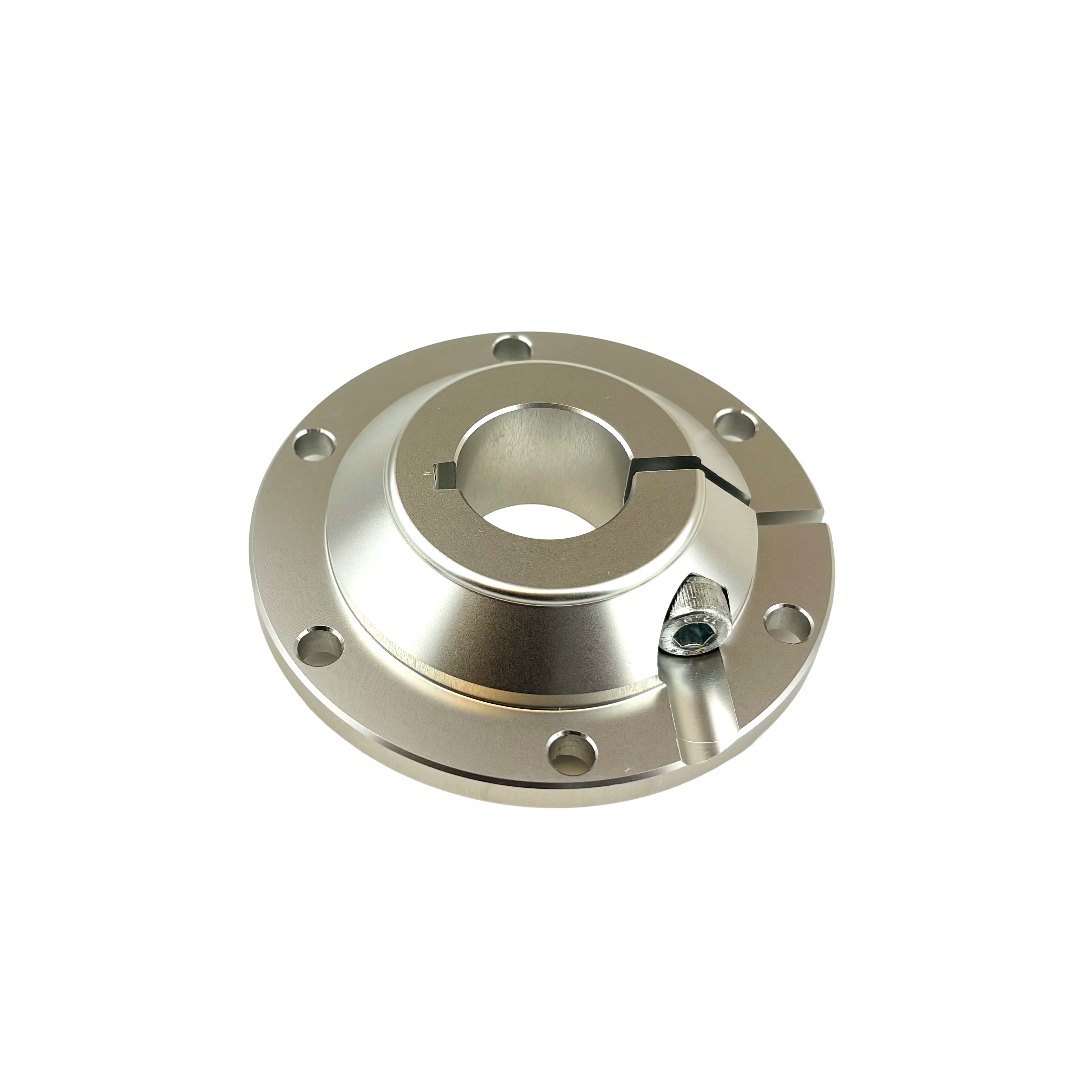

  • AEQ-DC30 - Manufactured from heat treated cast aluminium and comes with a 76mm location diameter, single M8 clamping bolt and 6mm key.
  • AEQ-CDC30 - Manufactured from heat treated cast aluminium and comes with a 76mm location diameter, single M8 clamping bolt, 6mm grub screw and 6mm key

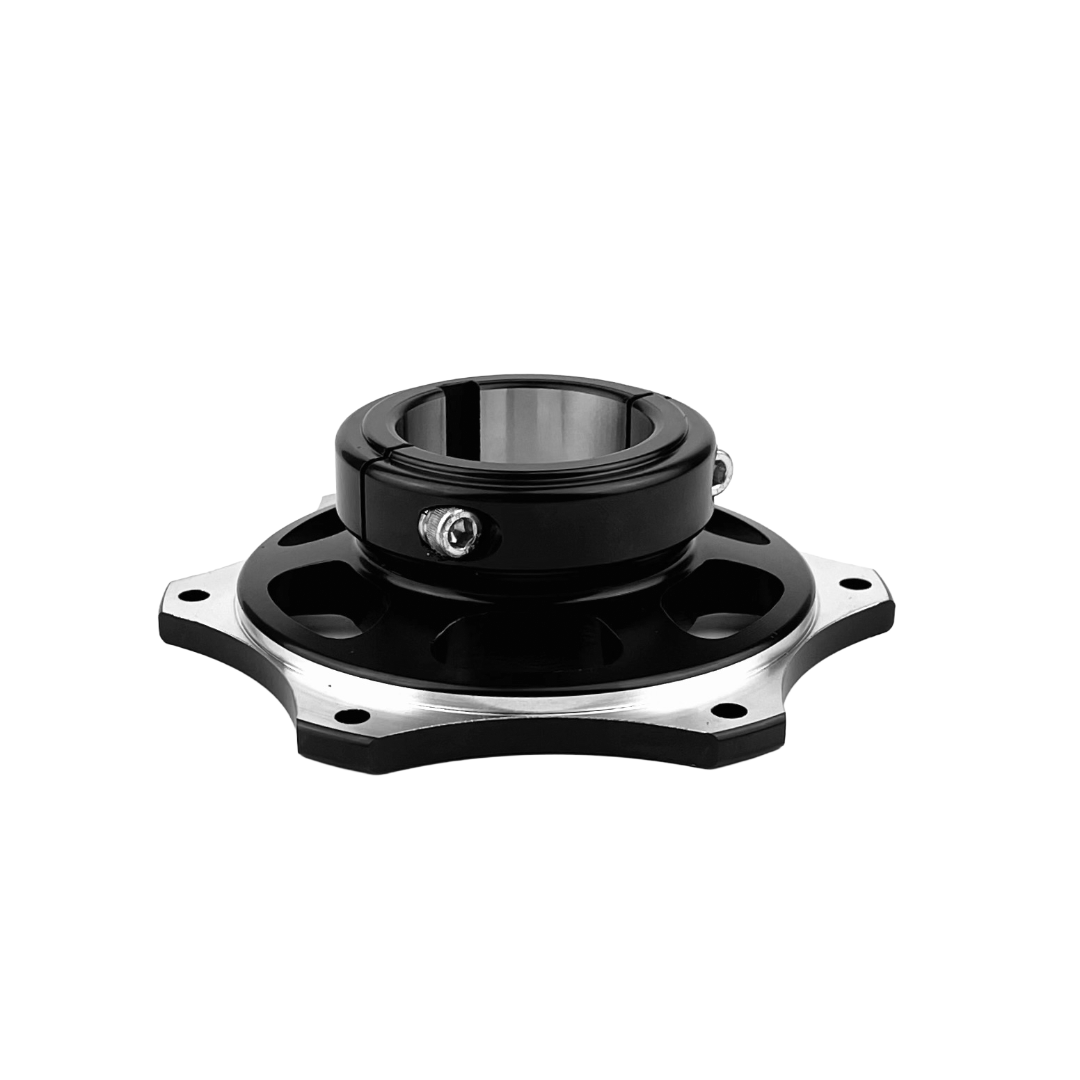

  • AEQ-DC30B - Manufactured from aluminium billet and comes with a 100mm location, black anodised finish, twin M6 clamping bolts and 6mm/8mm keys.

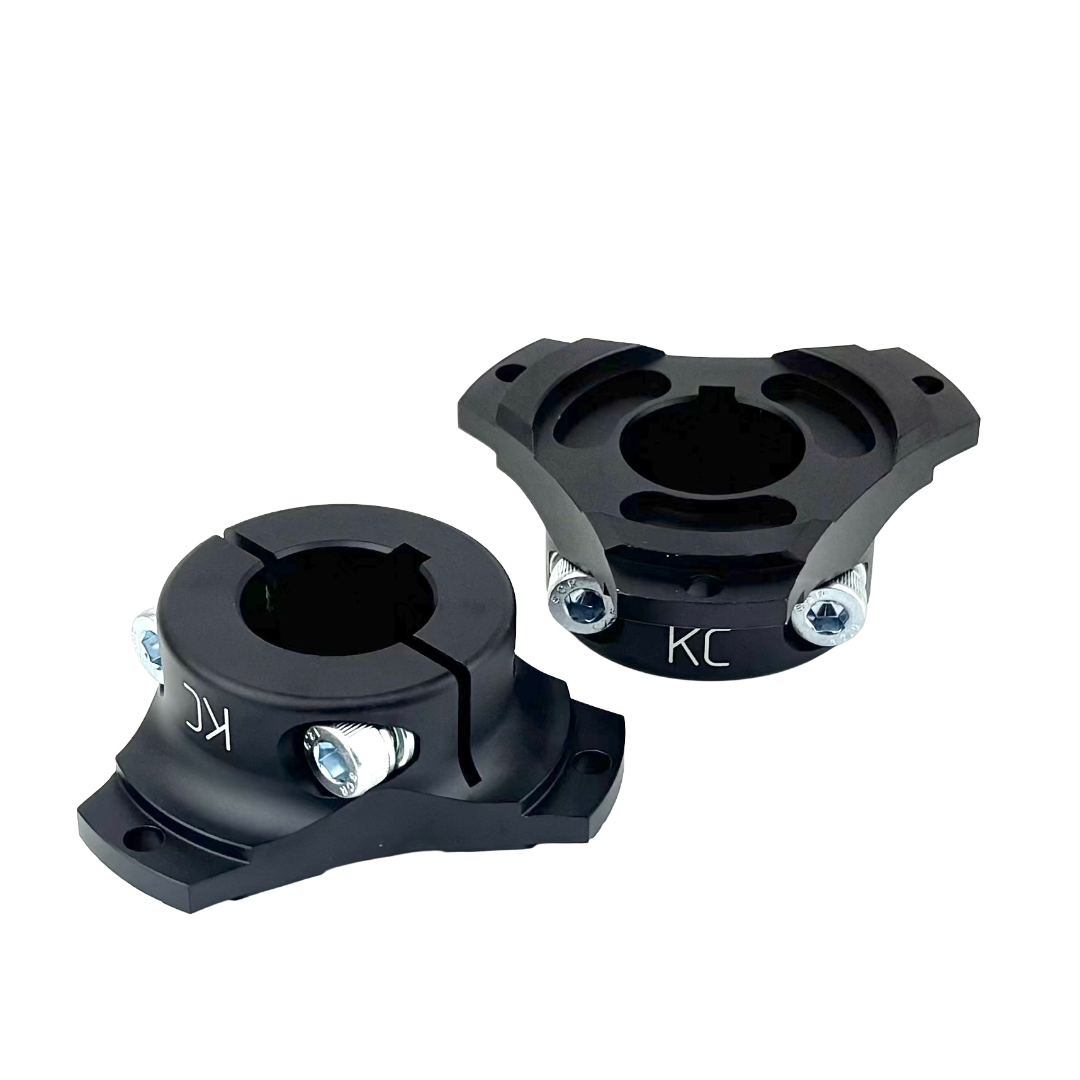

30mm Sprocket Carriers

Our sprocket carriers are a standard size and fit all sprockets available on the market.


  • AEQ-SC30 -  Manufactured from heat treated cast aluminium this carrier comes with a single M8 clamping bolt and 6mm key.
  • AEQ-SC30B - Manufcatured from aluminium billet and finioshed off with a black anodise this carriers comes with 2 x M6 clamping bolts and 6mm/8mm keys.

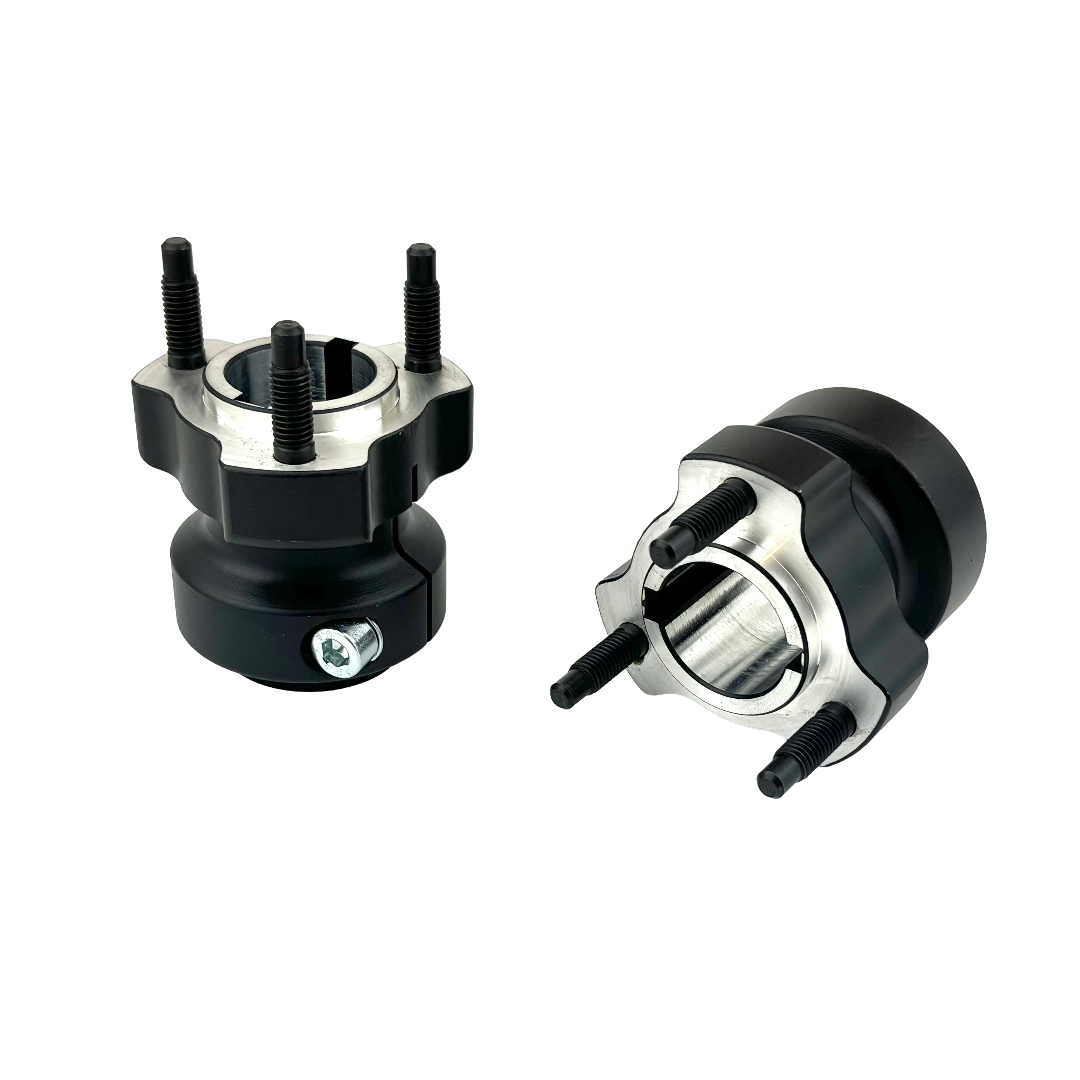

50mm Rear Hubs

Our 50mm rear hubs are manufactured from aluminium billet and finished off with a black anodise.

  • AEQ-RH50S -  50mm x 65mm with single M8 clamping bolt and 8mm key.
  • AEQ-RH50M - 50mm x 90mm with single M8 clamping bolt and 8mm key.
  • AEQ-RH50L -  50mm x 115mm with double clamping bolts and 8mm key

Hubs have a 58mm PCD and a 40mm location

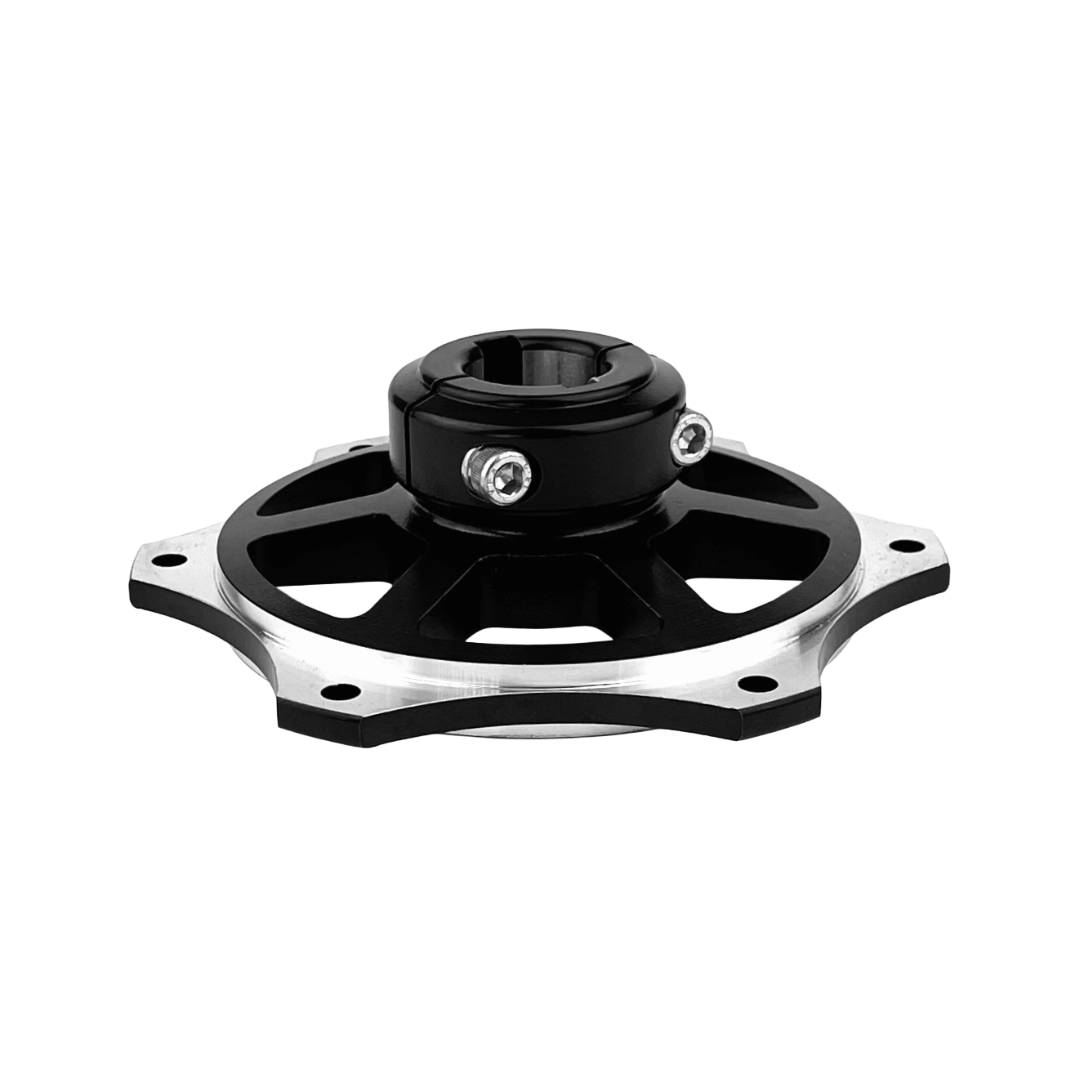

50mm Disc & Sprocket Carriers

Our carriers are manufactured fromaluminium billet and finshed off with a black anodise.


  • AEQ-DC50 - 100mm location, twin M6 clamping bolts and an 8mm key
  • AEQ-SC50 -  Fits all rear sprockets, twin M6 clamping bolts and an 8mm key.
