Axles

All of our axles are manufactured from high quality precision ground steel. The materials we use are proven to offer the best strength and flexibility on the race and rental kart track.

If you would like a quote please send us a sketch or drawing of your requirements to factory@kartcomponents.com

Please CLICK HERE for a list of our axles and prices.

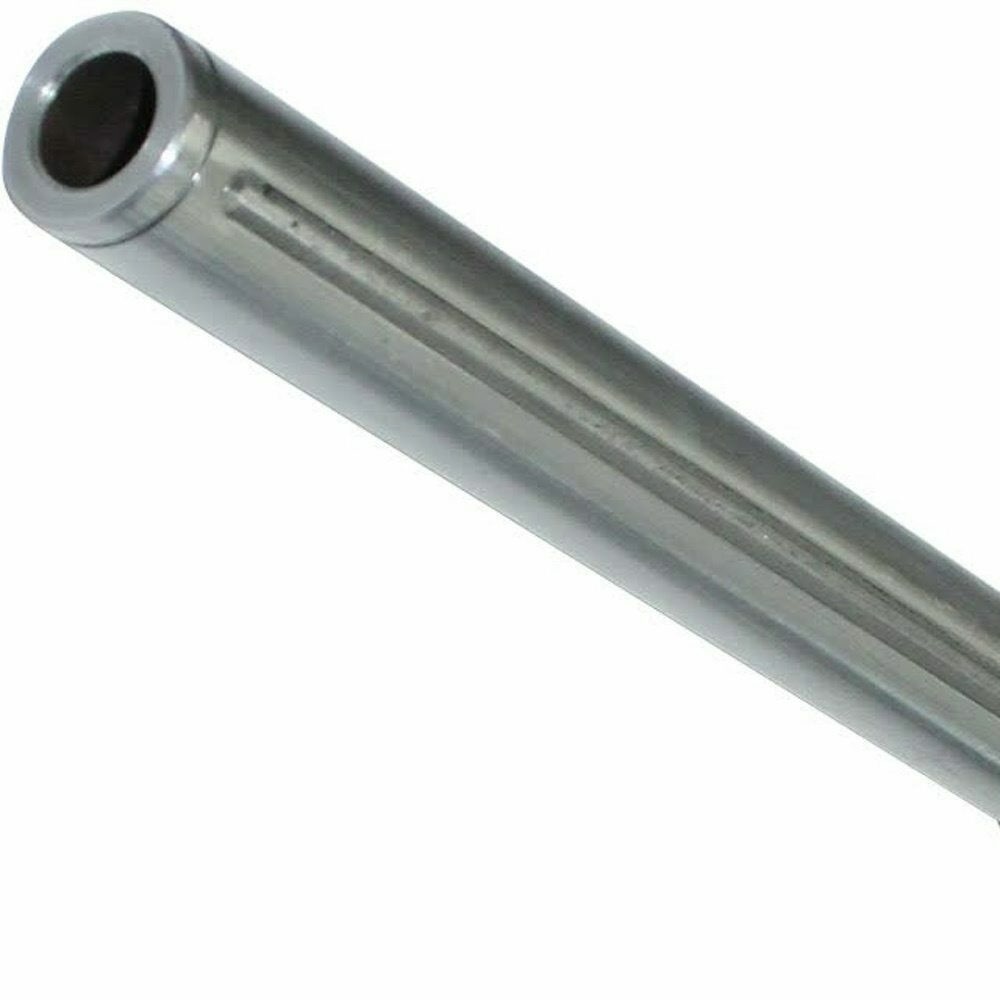

25mm Hollow & Solid Bambino Axles

Manufactured from high quality precision ground steel with 6mm pocketed keys. These axles are available with a 4.7mm or 3.3mm wall thickness.

We stock two sizes of each type but can manufacture to your own specification if needed. Solid axles are availble in soft, medium and hard compounds.

Bambino Hollow:
  • AXL-H25/850-4 - 25mm x 850mm - 4.7mm Wall Thickness
  • AXL-H25/950-4 - 25mm x 950mm - 4.7mm Wall Thickness
  • AXL-H25/850-3 - 25mm x 850mm - 3.3mm Wall Thickness
  • AXL-H25/950-3 - 25mm x 950mm - 3.3mm Wall Thickness

Bambino Solid:
  • AXL-25/850 - 25mm x 850mm
  • AXL-25/950 - 25mm x 950mm

If you would like a quote please send us a sketch or drawing of your requirements to factory@kartcomponents.com

25mm Hollow & Solid Cadet Axles

Manufactured from high quality precision ground steel with 6mm pocketed keys. These axles are available with a 4.7mm wall thickness as required by Motorsport UK.

Our stock sizes are listed below but we can manufacture to your own sketch or drawing as required.

Hollow:
  • AXL-H25/980   - 25mm x 980mm   - 4.7mm Wall Thickness
  • AXL-H25/1000 - 25mm x 1000mm - 4.7mm Wall Thickness
  • AXL-H25/1020 - 25mm x 1020mm - 4.7mm Wall Thickness
Hollow axles are available in two grades. Our standard grade and a harder/stiffer grade which are manufactured to order.

Solid:
  • AXL-25/980   - 25mm x 850mm
  • AXL-25/1000 - 25mm x 950mm
  • AXL-25/1020 - 25mm x 1020mm
Solid axles are available in 3 grades soft medium and hard. Soft and hard compounds are manufactured to order.

If you would like a quote please send us a sketch or drawing of your requirements to factory@kartcomponents.com

30mm Solid Axles

Our 30mm solid axles are used mainly in the rental kart market. We can manufacture axles to fit any rental kart on the market today including Biz, Sodi and RiMO.

The quality material we use makes our 30mm solid axles the best on the market for strength, reliability and cost. They are available in a medium or hard compound and in the following sizes from stock:


  • AXL-30/900   - 30mm x 900mm
  • AXL-30/1020 - 30mm x 1020mm
  • AXL-30/1040 - 30mm x 1040mm
  • AXL-30/1070 - 30mm x 1070mm
  • AXL-30/1090 - 30mm x 1090mm
  • AXL-30/1145 - 30mm x 1145mm

Axles are manufactured with open ended or pocket keys.

If you would like a quote please send us a sketch or drawing of your requirements to factory@kartcomponents.com

30mm Hollow Axles

The material we use to manufacture our 30mm hollow axles has been proven over the years to be extremely strong while still offering the flexibility needed for endurance karting. With a 5.5mm wall thickness these axles will not let you down in the toughest environment.


  • AXL-H30/1020R - 30mm x 1020mm
  • AXL-H30/1040R - 30mm x 1040mm
  • AXL-H30/1070R - 30mm x 1070mm
  • AXL-H30/1090R - 30mm x 1090mm
  • AXL-H30/1145R - 30mm x 1145mm
These axles above are manufactured with open ended key ways for rental karts.


  • AXL-H30/1020 - 30mm x 1020mm
  • AXL-H30/1040 - 30mm x 1040mm
  • AXL-H30/1070 - 30mm x 1070mm
  • AXL-H30/1090 - 30mm x 1090mm
  • AXL-H30/1145 - 30mm x 1145mm
These axles above are manufactured with pocket keys for racing karts

If you would like a quote please send us a sketch or drawing of your requirements to factory@kartcomponents.com
