Rental Kart Equipment

We manufacture a wide range of components especially for rental karts. If you require any specific parts please let us know as we can manufacture parts to your own specification subject to minimum orders.

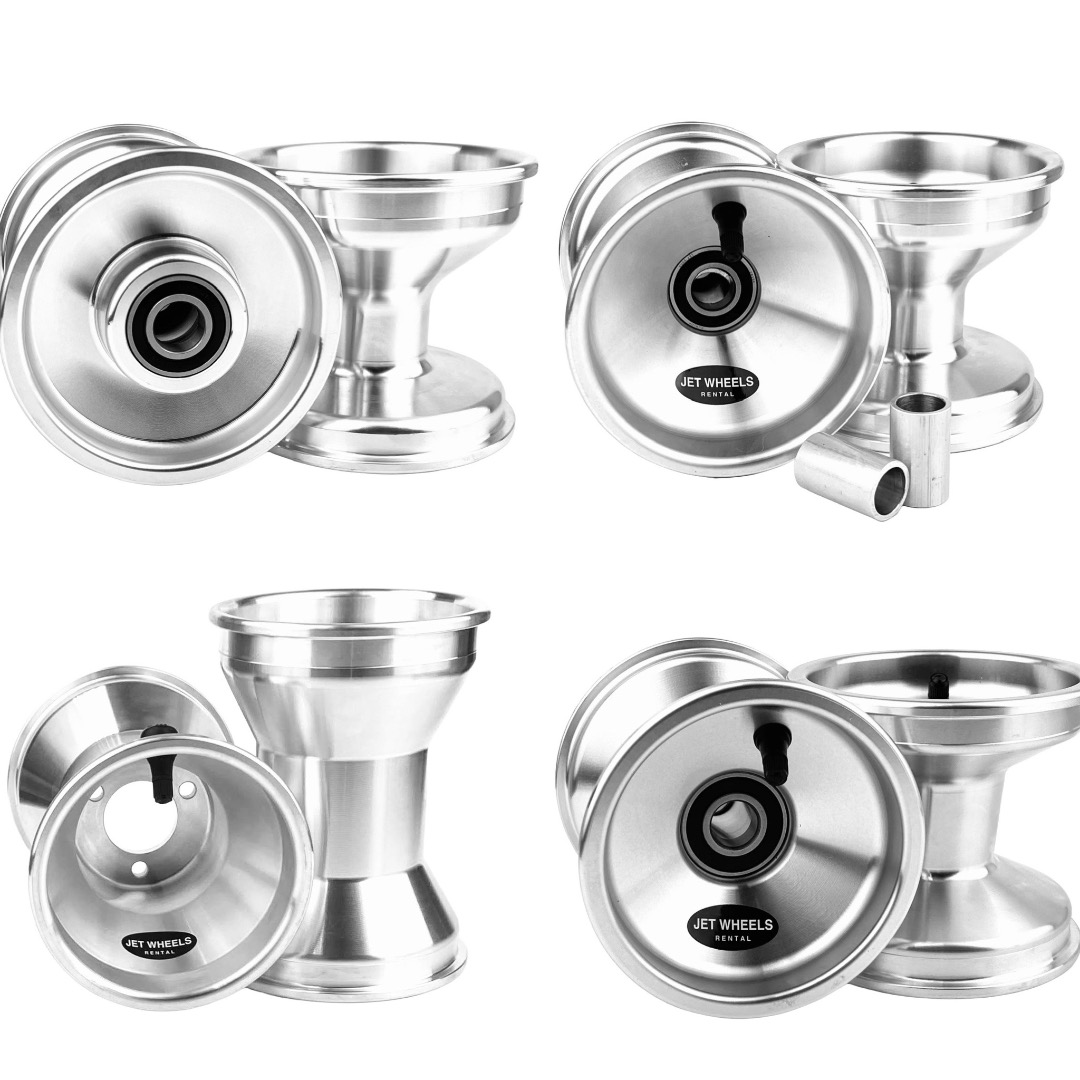

Front Wheels - Offset

Our rental kart wheels are manufactured from high quality heat treated aluminium.

These are available for 17mm and 20mm stub axles with the bearings offset in the rim.

All wheels are supplied with bearings and valves fitted.

  • JW-HDOS17  - Heavy Duty Offset - 17mm
  • JW-HDOS20  - Heavy Duty Offset - 20mm
  • JW-HDOS20S - Heavy Duty Offset - 20mm with Spacer

Rear Wheels

Our rental kart wheels are manufactured from high quality heat treated aluminium.

The rear wheels come in two sizes 160mm or 180mm.

  • JW-HD160 - 160mm Rear
  • JW-HD180 - 180mm Rear

Front Wheels - Central Bearing

Our rental kart wheels are manufactured from high quality heat treated aluminium.

These are available for 17mm and 20mm stub axles with the bearings mounted in the centre of the rim.



  • JW-HDC17  - Heavy Duty Central - 17mm (2 x 6203RS Bearings)
  • JW-HDC20  - Heavy Duty Central - 20mm (2 x 6004RS Bearings)

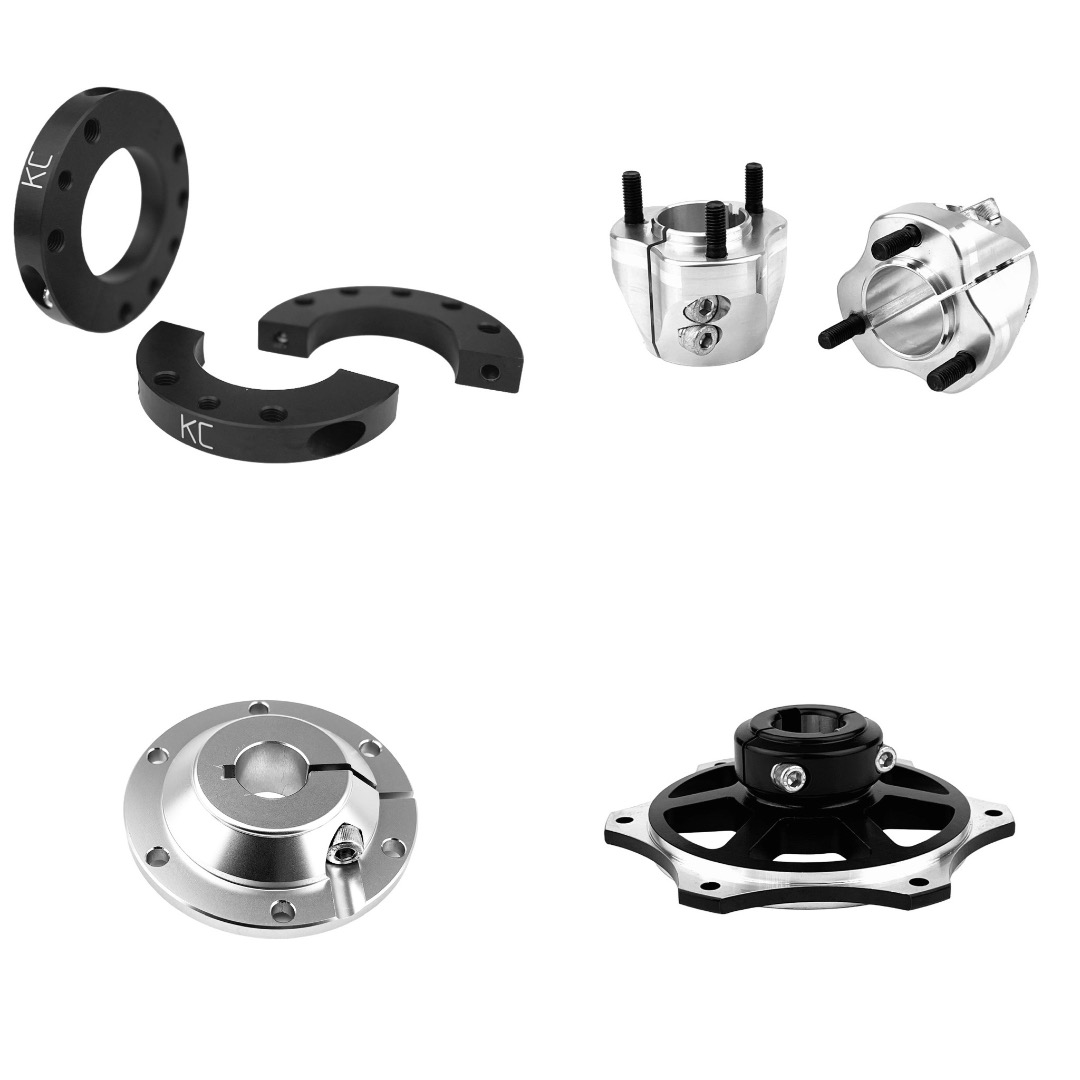

30mm Rear Hub Twin Bolt

  • AEQ-RH30TB - 30mm x 55mm Rear Hub

Features:

  • 58mm PCD
  • 40mm Location
  • High Tensile Wheel Studs
  • 2 x M8 Clamping Bolts
  • Available with or without Anodise
  • Laser Etching Available

35mm Rear Hub Twin Bolt

  • AEQ-RH35TB - 35mm x 55mm
Features:

  • 58mm PCD
  • 40mm Location
  • High Tensile Wheel Studs
  • 2 x M8 Clamping Bolts
  • Available with or without Anodise
  • Laser Etching Available

30mm Quick Release Bearing Carriers

These aluminium bearing carriers are designed for 30mm axle bearings and are supplied in bare aluminium.

We can anodise these parts upon request if needed.

  • RKT-QR30  - Quick Realease Bearing Carrier 30mm

Steering Wheels

This steering wheel has been manufactured in the popular 3 spoke design and offers comfort and stability to the driver. Fully compatible with karts running other popular steering wheels.


  • RKT-SW - Rental Kart Steering Wheel

Seats & Seat Inserts

Our seat comes in one size XXL manufactured from tough uncovered plastic and perfect for all rental kart on the market today.

Seat Insert: This seat insert is ideal for use in karts where the driver need to be pushed forward to make it easier to reach the pedals. It also offers good support and has keen manufactured thicker at the top to prevent tearing when removing from the kart.


  • RKT-KCSI - Kart Components Seat Insert
  • RKT-SRS - Caliba Seat Reduction System
  • RKT-SEAT - Extra Large Plastic Seat

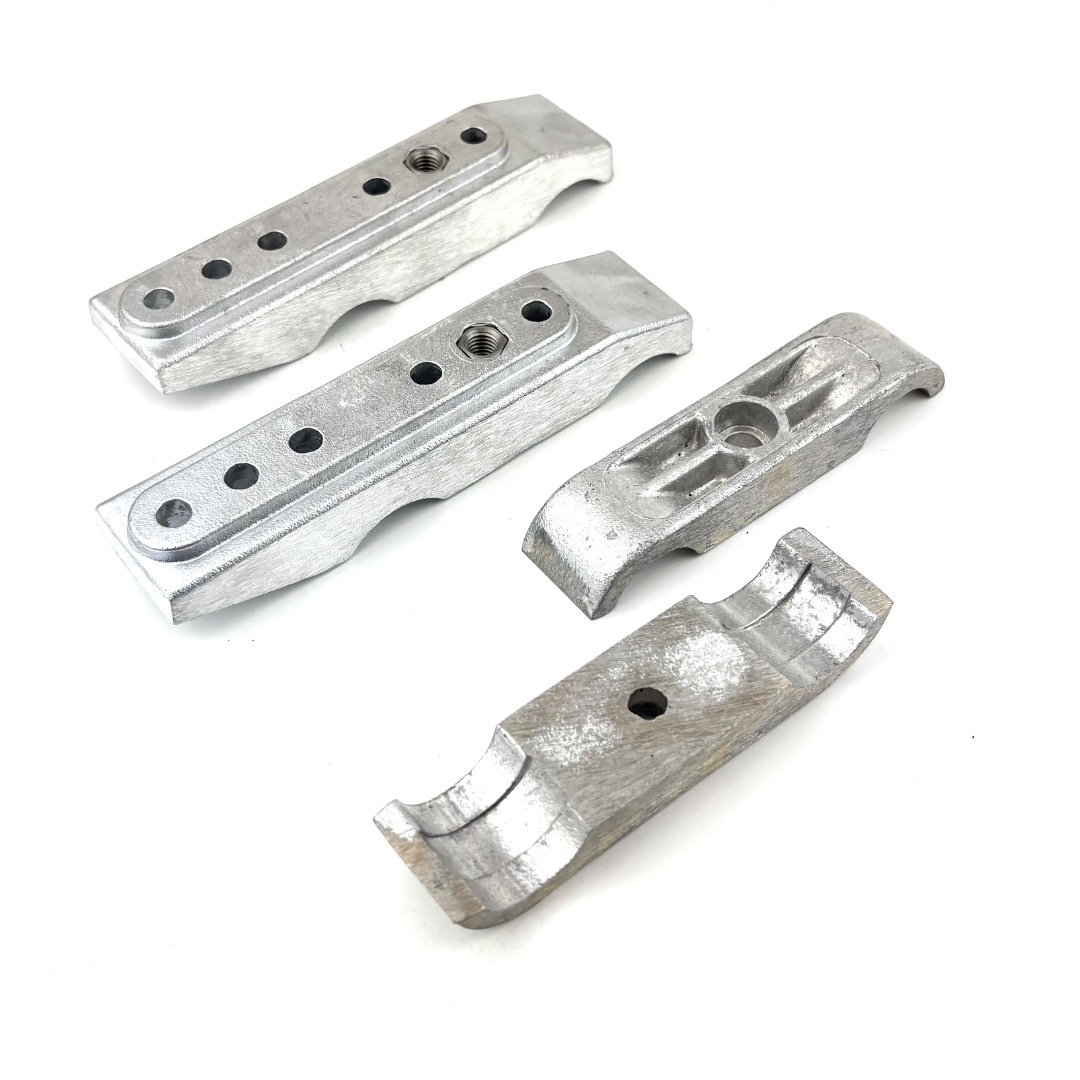

Honda Engine Mounts

Our Honda engine mounts will fit all Honda engines from the GX120, GX160, GX200 and GX270 ranges. Tough and durable these parts are manufactured from heat treated aluminium and will keep the engine in place.

  • RKT-EMH  - Engine Mount Honda
  • RKT-EMC - Engine Mount Clamp
