Rental Kart Wheels

High quality aluminium cast rims that go through a rigorous manufacturing process including heat treatment, precision CNC machining and pressure tested to ensure a high level of performance on the track.

These are the toughest and strongest rental kart wheels on the market.

For trade enquiries or for more information please CLICK HERE





  • Manufactured from high quality cast aluminium.
  • Heat treated for extra strength and stiffness
  • Precision CNC machined
  • Pressure tested to ensure no leakage.
  • All front wheels supplied with bearings valve and spacer.
  • Bespoke wheels available subject to minimum order
  • Wheels to fit all major rental kart manufacturers.

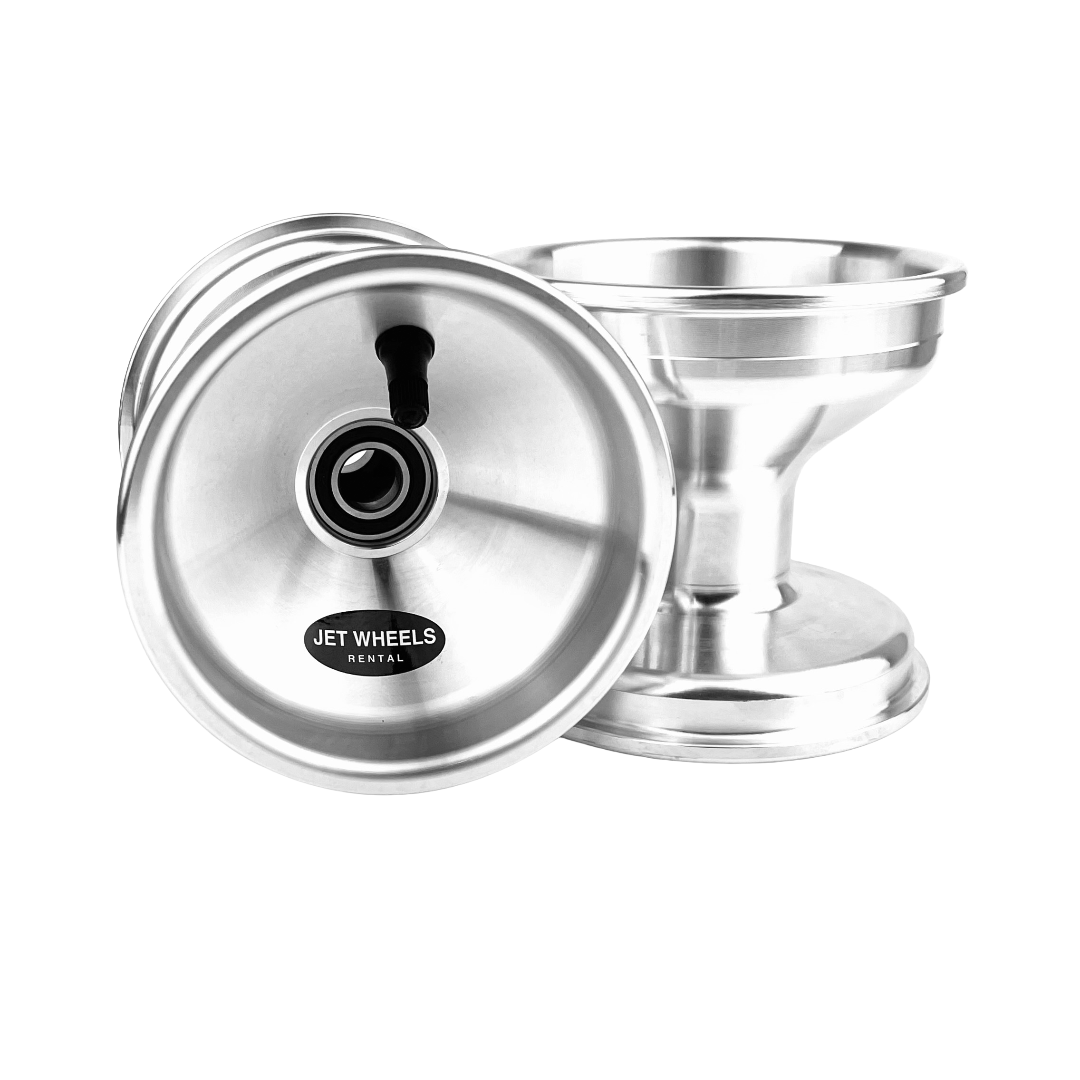

Rental Front Wheel

  • Part No: JW-HD120OS17

  • Overall Width: 120mm

  • Diameter: 5 inch

  • Spindle Diameter: 17mm

  • Bearings: 2 x 6203RS

Rental Front Wheel

  • Part No: JW-HD120OS20

  • Overall Width: 120mm

  • Diameter: 5 inch

  • Spindle Diameter: 20mm

  • Bearings: 2 x 6004RS

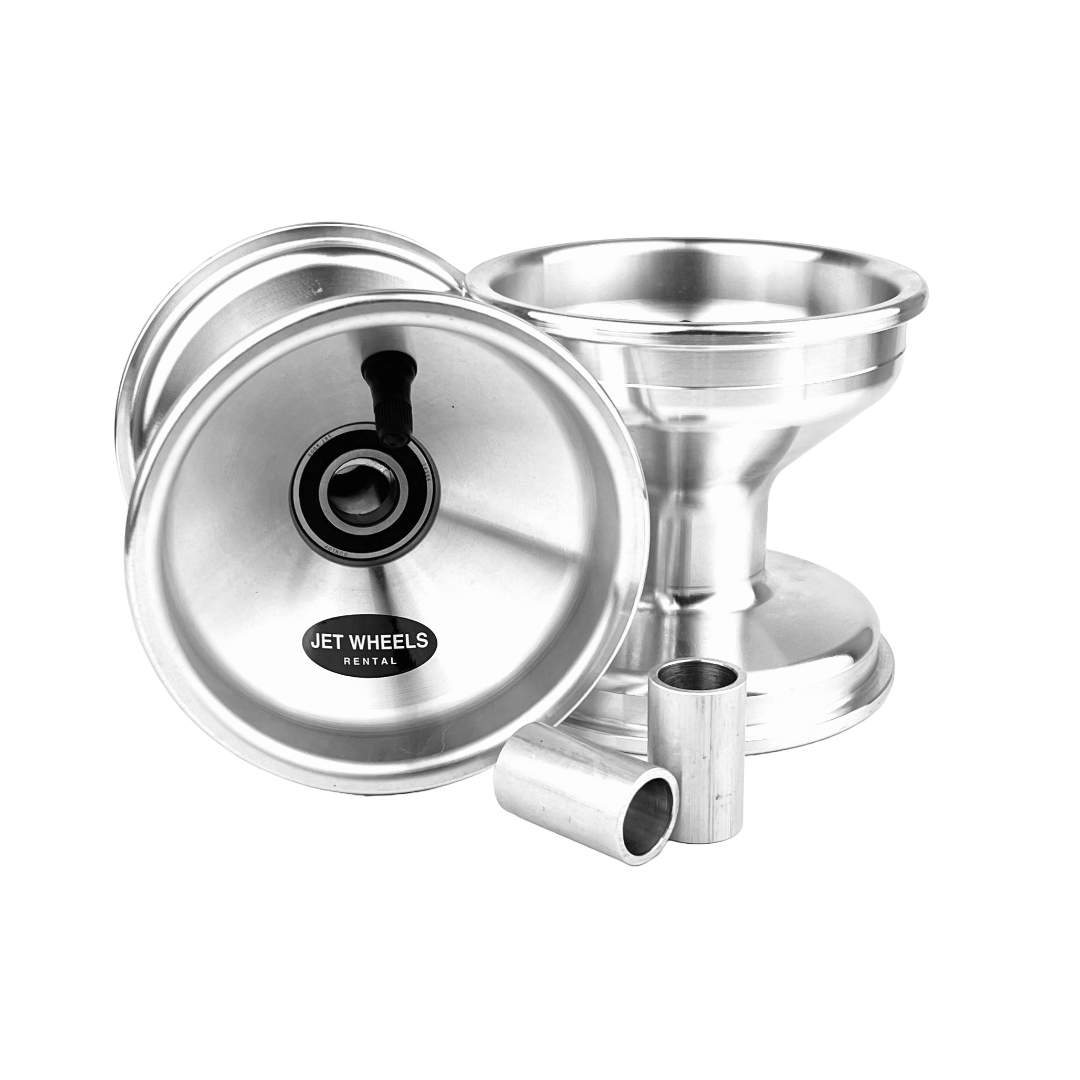

Rental Kart Front Wheel - RiMO Type

  • Part No: JW-HDOS1720

  • Overall Width: 125mm

  • Diameter: 5 inch

  • Spindle Diameter - 17mm/20mm Stepped

  • Bearings: 1 x 6003RS & 1 x 6004RS

Rental Kart Front Wheel - Sodi Type

  • Part No: JW-HDOS20S

  • Overall Width: 125mm

  • Diameter: 5 inch

  • Spindle Diameter: 20mm

  • Bearings: 2 x 6004RS

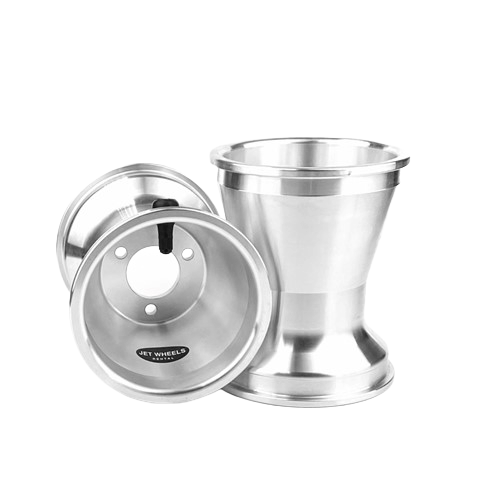

Rental Kart Rear Wheel

  • Part No: JW-HD160

  • Overall Width: 160mm

  • Diameter: 5 inch

  • Details: 40mm Location / 58mm PCD

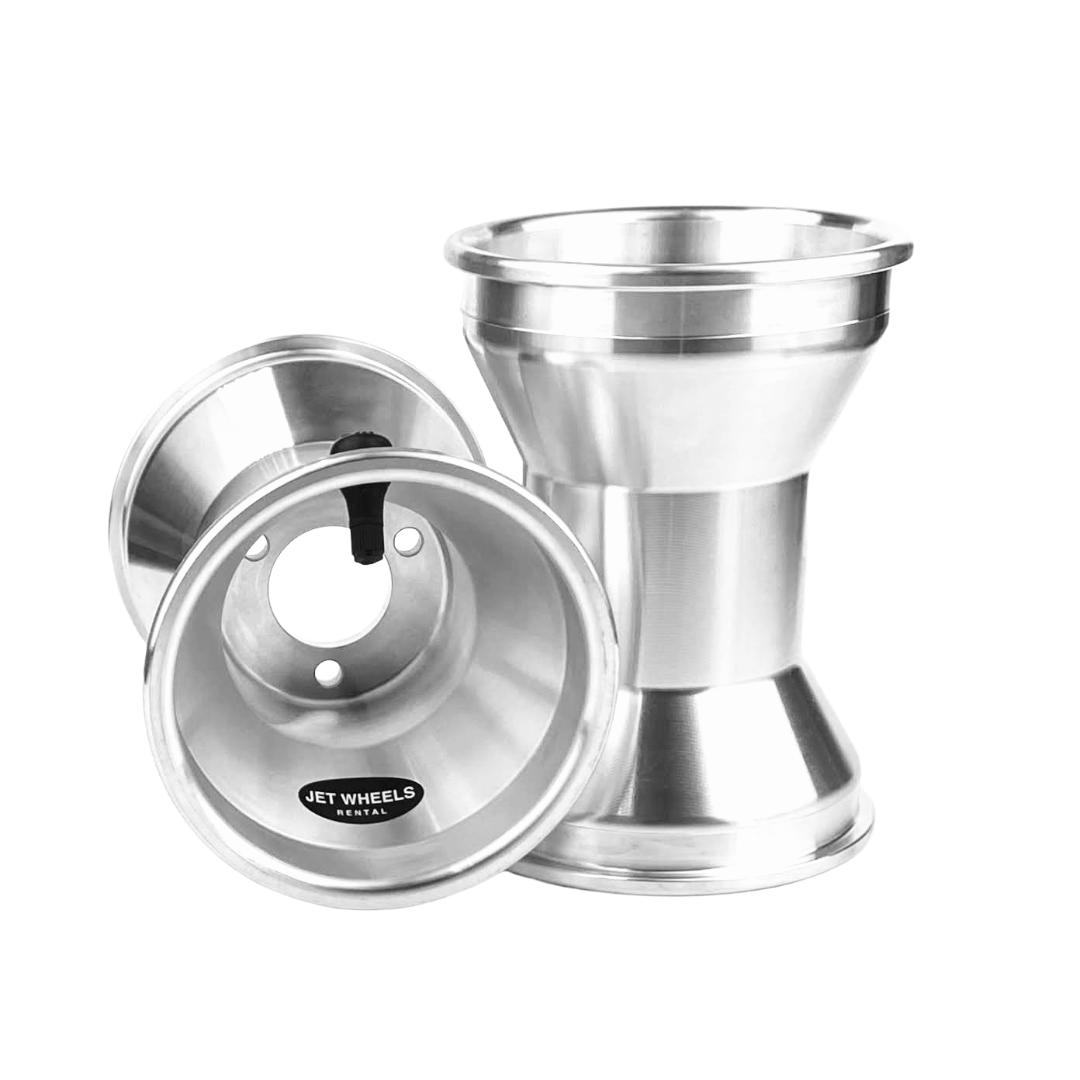

Rental Kart Rear Wheel

  • Part No: JW-HD180

  • Overall Width: 180mm

  • Diameter: 5 inch

  • Details: 40mm Location / 58mm PCD
